Overview & Features

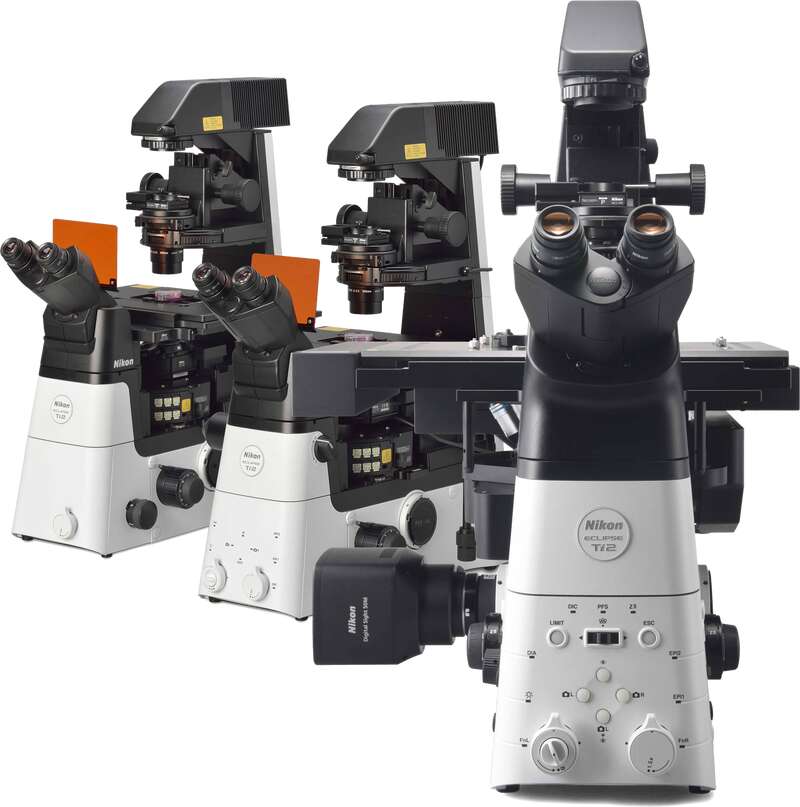

The ECLIPSE Ti2 inverted microscope delivers an unparalleled 25mm field of view (FOV) that revolutionizes the way you see. With this incredible FOV, the Ti2 maximizes the sensor area of large-format CMOS cameras without making compromises, and significantly improves data throughput. The Ti2’s exceptionally stable, drift-free platform is designed to meet the demands of super-resolution imaging while its unique hardware-triggering capabilities enhance even the most challenging, high-speed imaging applications. Furthermore, the Ti2’s unique, intelligent functions guide users through imaging workflows by gathering data from internal sensors, eliminating the possibility of user errors. In addition, the status of each sensor is automatically recorded during acquisition, providing quality control for imaging experiments and enhancing data reproducibility.
In combination with Nikon’s powerful acquisition and analysis software, NIS-Elements, the Ti2 is a total innovation in imaging.
Features
Specifications
| Main body | ECLIPSE Ti2-E/Ti2-E/B*1 | ECLIPSE Ti2-A | ECLIPSE Ti2-U |
|---|---|---|---|
| Optical system | Infinity-corrected CFI60 | ||
| Field number*2 | 22 with C-mount, 25 with F-mount | ||
| Intermediate Magnification switching | Manual switching of 1.0X/1.5X (exchangeable from 1.5X to 2.0X) | ||
| Status detection | – | ||
| Bertrand lens | Manual in/out, and manual focus, Status detection | – | |
| Output port | 4 Motorized positions
Eyepiece 100%, left 100%, right 100%, eyepiece 20%/left 80% (Ti2-E/B: bottom 100%) |
4 Manual positions
Eyepiece 100%, left 100%, right 100%, option (to eyepiece 20%/left 80% or eyepiece 20%/right 80%) |
|
| Can add ports by use of back port unit and/or choice of tube base unit*3 | |||
| Focusing unit | Motorized drive, Coarse/fine focus changeover, 10mm stroke, Minimum increments: 0.01 μm, 0.02 μm (with encoder control) | Manual drive, Coarse/fine focusing knob, 10 mm stroke | |
| Stage up | Available*4 | ||
| Tube body | ECLIPSE Ti2-E/Ti2-E/B*1 | ECLIPSE Ti2-A | ECLIPSE Ti2-U |
|---|---|---|---|
| Binocular tube | Binocular S tube TC-T-TS (field number 22), Ergonomic ER tube TC-T-ER (field number 22) | ||
| Motorized eyepiece tube base unit for external PH (Ti2-T-BP-E) | Camera port (field number 16), Motorized PH turret with 4 motorized positions | – | |
| Assist eyepiece tube base unit (Ti2-T-BA) | Assist camera (field number 22), Status detection | – | |
| Eyepiece tube base unit with port (Ti2-T-BC) | Camera port (field number 16) | – | Camera port (field number 16) |
| Transmitted illumination | ECLIPSE Ti2-E/Ti2-E/B*1 | ECLIPSE Ti2-A | ECLIPSE Ti2-U |
|---|---|---|---|
| Pillar for transmitted illumination (Ti2-D-PD) | Condenser vertical stroke: 66 mm, Backward tilting up to 25 degrees, With field diagram and refocusing mechanism 2 filter slot positions (4 filter position option is also available with Filter Slider for transmitted illumination (Ti2-D-SF)) | ||
| LED Lamphouse for dia illumination (Ti2-D-LHLED) | High power LED | ||
| High Color Rendering LED Lamphouse (C-LL) | High color rendering LED | ||
| Precentered Lamphouse (D-LH/LC) | 100W halogen bulb (pre-centered) | ||
| Condenser | ECLIPSE Ti2-E/Ti2-E/B*1 | ECLIPSE Ti2-A | ECLIPSE Ti2-U |
|---|---|---|---|
| Motorized condenser turret (Ti2-C-TC-E) | 7 motorized positions (ø37mm x4, ø39mm x3), LWD/ELWD/CLWD/NAMC condenser lenses are supported | – | |
| Intelligent condenser turret (Ti2-C-TC-I) | 7 manual positions (ø37 mm x4, ø39 mm x3), Status detection, LWD/ELWD/CLWD/NAMC condenser lenses are supported | – | |
| Condenser turret (TC-C-TC) | 7 manual positions (ø37 mm x4, ø39 mm x3), LWD/ELWD/CLWD/NAMC condenser lenses are supported | ||
| ELWD-S condenser turret (TE-C) | 4 manual positions, With ELWD condenser lens (NA0.3/O.D.=65) | ||
| HNA condenser slider (Ti2-C-SCH) | 2 manual positions (ø37 mm x1, ø39 mm x1), HNA dry lens/HNA oil lens are supported | ||
| Condenser lens | LWD (O.D.=30 mm, NA=0.52), ELWD (O.D.=75 mm, NA=0.29), CLWD (O.D.=13 mm, NA=0.72), HNA dry (O.D.=5 mm, NA=0.85), HNA oil (O.D.=2 mm, NA=1.4), NAMC (O.D.=44 mm, NA=0.4) | ||
| Stage | ECLIPSE Ti2-E/Ti2-E/B*1 | ECLIPSE Ti2-A | ECLIPSE Ti2-U |
|---|---|---|---|
| Motorized stage (Ti2-S-SE-E, Ti2-S-SS-E) | Stroke X: ±57 mm, Stroke Y: ±36.5 mm, Max drive speed: approx. 25mm/sec, Magnetic sample holder | – | |
| Stage (TC-S-SR, TC-S-SRF) | Stroke X: ±57 mm, Stroke Y: ±36.5 mm, Adjustable stroke range (3 levels) with adjusting pin, Long/middle/short handle options available | ||
| Gliding stage (TC-S-GS) | Stroke ø20 mm | ||
| Nosepiece | ECLIPSE Ti2-E/Ti2-E/B*1 | ECLIPSE Ti2-A | ECLIPSE Ti2-U |
|---|---|---|---|
| Perfect Focus Unit with motorized nosepiece for Auto Correction Collar (Ti2-N-NDA-P) | 5 motorized positions, Water-resistant*5 |
– | |
| Motorized DIC sextuple nosepiece (Ti2-N-ND-E)
Perfect Focus Unit with motorized nosepiece (Ti2-N-ND-P) Perfect Focus Unit with motorized nosepiece for MP (Ti2-N-NDM-P) |
6 motorized positions, Water-resistant*5 |
– | |
| Intelligent DIC sextuple nosepiece (Ti2-N-ND-I) | 6 manual positions, Status detection, Water-resistant*5 | – | |
| Sextuple nosepiece (Ti2-N-N), DIC sextuple nosepiece (Ti2-N-ND) | 6 manual positions, Water-resistant*5 | ||
| Epi-filter turret | ECLIPSE Ti2-E/Ti2-E/B*1 | ECLIPSE Ti2-A | ECLIPSE Ti2-U |
|---|---|---|---|
| Motorized epi filter turret (Ti2-F-FLT-E, Ti2-F-FLTH-E) | 6 motorized positions, Motorized shutter | – | |
| Intelligent epi filter turret (Ti2-F-FLT-I) | 6 manual positions, Manual shutter, Status detection*6 | ||
| Filter wheel/shutter | ECLIPSE Ti2-E/Ti2-E/B*1 | ECLIPSE Ti2-A | ECLIPSE Ti2-U |
|---|---|---|---|
| Motorized BA filter wheel (Ti2-P-FWB-E) | 7 motorized positions, High speed mode: 50ms, Low vibration mode: 100ms (movement time between adjacent positions) | – | |
| Motorized shutter (Ni-SH-E)*7 | 12ms to open/close | ||
| Epi-fluorescence attachment | ECLIPSE Ti2-E/Ti2-E/B*1 | ECLIPSE Ti2-A | ECLIPSE Ti2-U |
|---|---|---|---|
| EPI-FL module (TI2-LA-FL-3) | Supports fiber illuminator; includes 2-position filter slider and aperture diaphragm | ||
| Field stop slider | Circular (TI2-F-FSC), rectangular (TI2-F-FSR), square (TI2-F-FSS) aperture options | ||
| Control unit | ECLIPSE Ti2-E/Ti2-E/B*1 | ECLIPSE Ti2-A | ECLIPSE Ti2-U |
|---|---|---|---|
| Controller, display device | Stage joystick (TI2-S-JS-SS), Tablet | Tablet | – |
| Controller for Ti2-E (TI2-CTRE) | USB/LAN interface, I/O function | – | |
| Operating environmental | ECLIPSE Ti2-E/Ti2-E/B*1 | ECLIPSE Ti2-A | ECLIPSE Ti2-U |
|---|---|---|---|
| Temperature: 0℃+40℃, Humidity: 60% RH max. (at +40℃, no condensation), Indoor use only | |||
Motorized accessories have a status detection function
*1 Motorized model with a bottom port
*2 Limitations apply based on objective and filter cube choice, stage-up configuration, and illumination module, etc.
*3 Tube base units with a port cannot be used with Ti2-A
*4 Stage up kit is required. Please contact Nikon.
*5 This product is not waterproof. Water-resistant properties are only guaranteed when all specified conditions below are satisfied.
*6 Status detection cannot be used when attached to the Ti2-U
*7 Ni-SH-CON Controller for Motorized Shutter is required for use with the Ti2-A/Ti2-U
Conditions to Ensure Water-resistant Function of the Nosepiece
- Properly attach either of the following to the nosepiece:
- Objective lens mount: Objective lens or Objective lens mounting hole cap
- DIC slider mount: DIC slider cap or DIC slider
- Properly attach either the supplied water collection tray or the optional Ti2-N-PT nosepiece protection tray.
- Exercise caution to ensure that water discharged from the drainage tube does not come into contact with the main unit.
For the safe operation of this product, please follow the instructions in the user manual for proper installation and use.
