Overview & Features

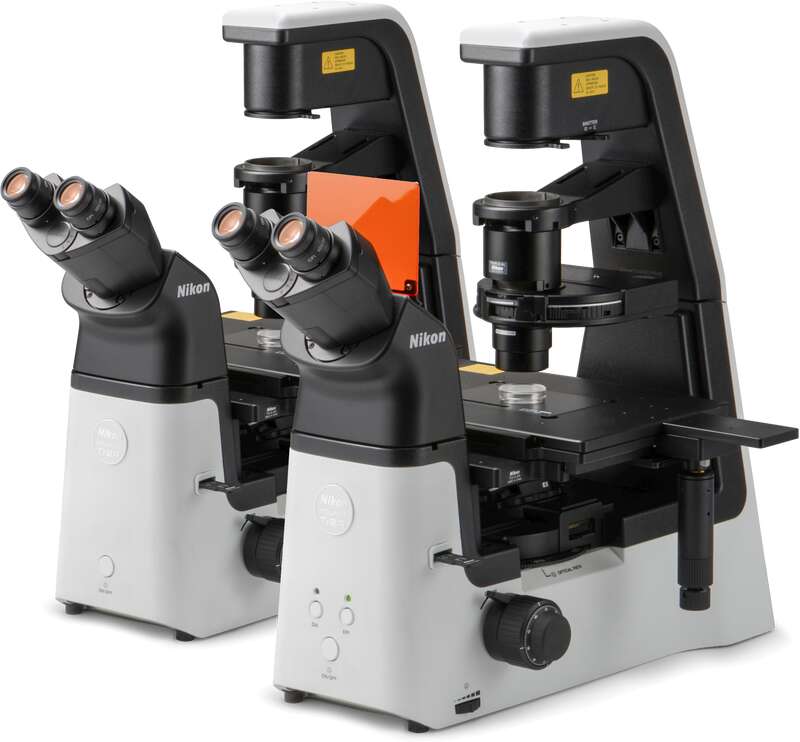

A compact inverted research microscope configurable with a wide variety of observation methods.
The ECLIPSE Ts2R sets a new standard for the inverted research microscope, providing a wide range of observation methods and applications in a compact body that can easily fit in limited laboratory spaces while maintaining excellent operability.
Features
Simple operations
Control buttons on the Ts2R microscope are intuitively located for a streamlined workflow. The on/off and Diascopic/Epi-fluorescence switching controls are located on the front panel while buttons pertaining to either Diascopic or Epi-fluorescence control are zoned to the left and right sides of the microscope body, respectively.

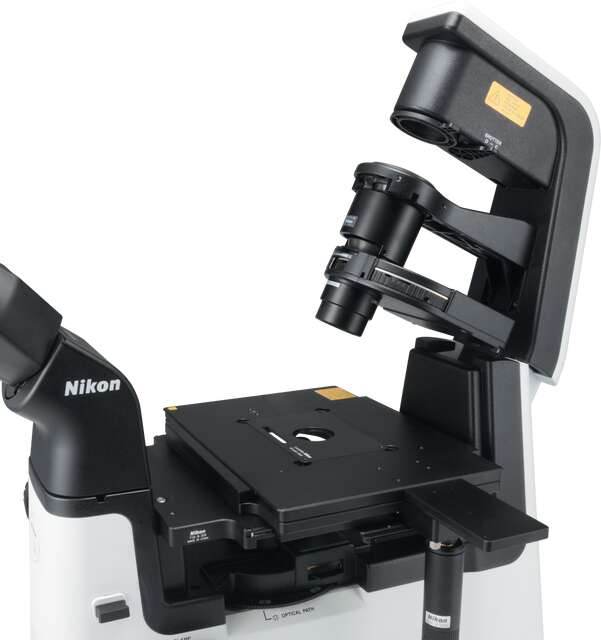

New ergonomic stage design for improved workflow
The Ts2R’s stage height has been lowered by approximately 30% compared to the standard research microscope*, thereby ensuring a comfortable hand position during repetitive operation and sample exchange. Moreover, lowering the support columns and positioning the camera port on the side of the tube improve sample visibility.
*Comparison with Nikon’s Inverted Research Microscope ECLIPSE Ti2

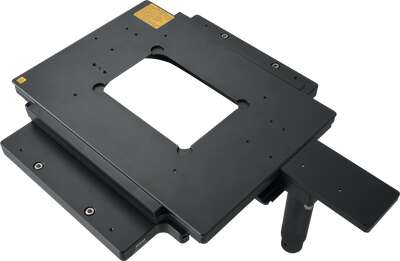

Newly developed mechanical stage

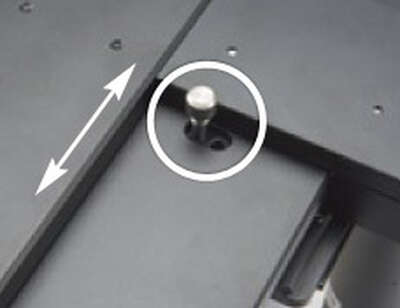

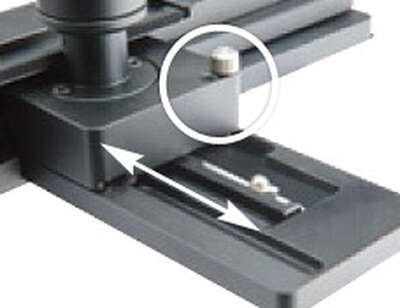

The Ts2R can be configured with an optional rectangular mechanical stage. This stage provides a long travel stroke, enabling users to observe an entire well plate from end-to-end. You can also set limits to the travel stroke (three-way) to match frequently used samples or vessels. The stage handle is offered in two lengths, long or short, to further accommodate the user’s needs.
➁ Petri dish holder (35mm)
➂ Petri dish holder (100mm)
➃ Well plate clamper
➄ Terasaki
➅ Universal holder

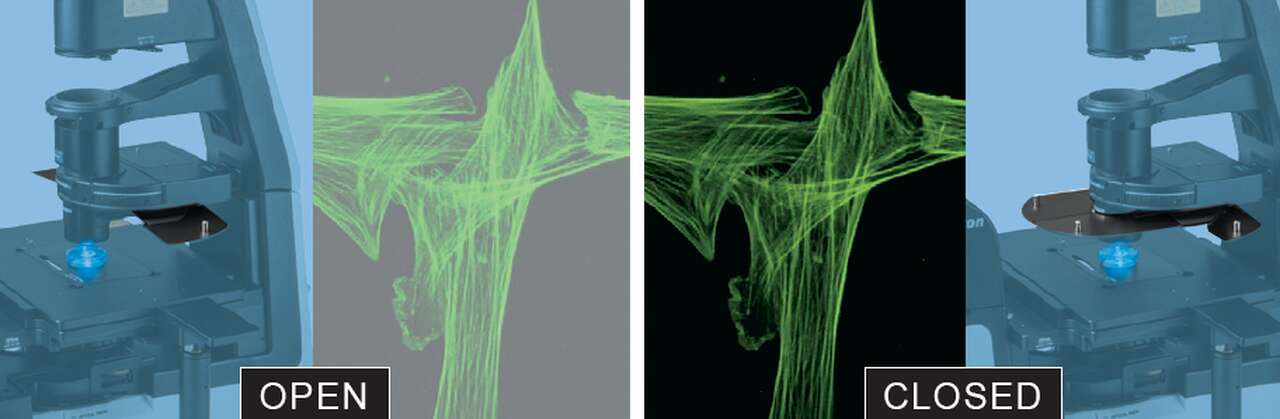

High S/N Epi-fluorescence observation in bright rooms
The optional Contrast Shield accessory blocks room light, providing an easy and cost-effective method for achieving high signal-to-noise fluorescence observation in a brightly lit laboratory.
Versatile observation with LED illuminator
The high-intensity LED light source enables you to perform a wide variety of observation methods similar to the full-size ECLIPSE Ti2 inverted research microscope. The Ts2R-FL model, which offers Epi-fluorescence observation, provides four fluorescence channels, with 8 different wavelengths to choose from.
“Emboss Contrast” Contrasting Technique
Nikon’s new contrasting technique is compatible with both plastic and glass culture dishes. Unlike phase contrast or NAMC, Emboss Contrast does not require special objective lenses and therefore has minimal effect on Epi-fluorescence observation. Emboss Contrast allows thick samples such as embryos to be easily observed in pseudo-three-dimensional image with great clarity.

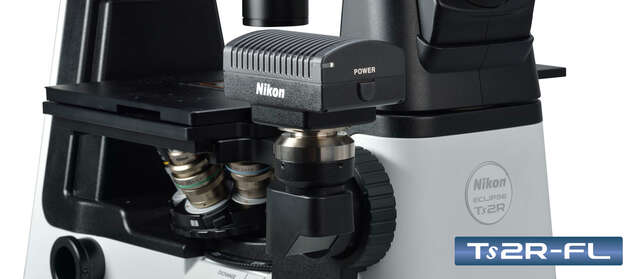

Compact body streamlines your work
Illumination modules, including the Epi-fluorescence light source, have been seamlessly incorporated into the microscope main body, resulting in a compact and simple design form that’s also durable. The compact structure is also vibration-resistant to provide highly stable sample observations.

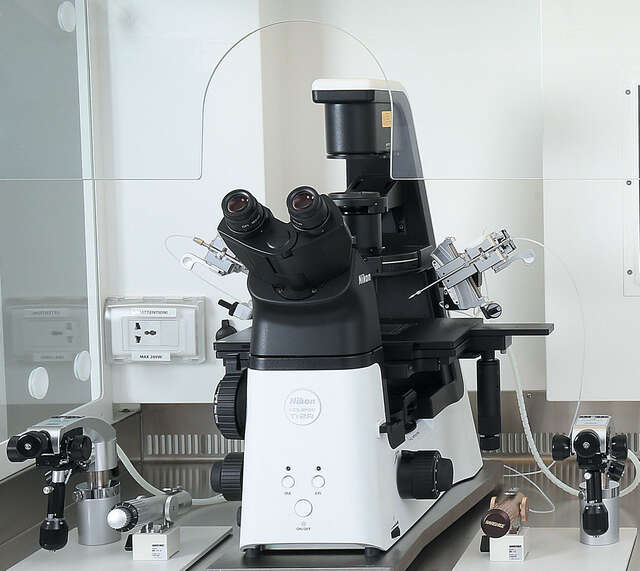

Easily fits inside laminar flow hoods
The compact size of the Ts2R microscope makes it easier to store and operate inside a laminar flow hood. Additionally, the low stage and side-port camera position reduce user fatigue from repetitive stage manipulation and provides clear visibility of the stage and sample even with the hood sash lowered.
High precision and quality
Advanced optical performance
The Ts2R is compatible with Nikon’s acclaimed CFI60 objective lenses which provide high numerical apertures and long working distances to deliver stunningly clear images.
Specifications
| Ts2R | Ts2R-FL | |
|---|---|---|
| Optical System | CFI60 Infinity Optical System | |
| Observation method | Brightfield, Apodized Phase Contrast*1, Phase Contrast, Nikon Advanced Modulation Contrast*2, DIC, Emboss Contrast*3, Spindle Observation | Brightfield, Apodized Phase Contrast*1, Phase Contrast, Nikon Advanced Modulation Contrast*2, DIC, Emboss Contrast*3, Epi-Fluorescence, Spindle Observation |
| Diascopic illumination |
High luminescent white LED illuminator (Eco-illumination), Built-in Fly eye lens | |
| Episcopic illumination |
— | LED illuminator, built-in Fly eye lens; can be configured with up to 4 different fluorescence LED units (available wavelengths: 385, 455, 470, 505, 525, 560, 590, 625 nm) |
| Tube |
|
|
| Eyepiece(F.O.V.) | 10X (22), 12.5X (16), 15X (14.5) | |
| Camera Port (Eyepiece：Port） | • TS2R-P-CF 100:0/0:100 • TS2R-P-CH 100:0/20:80 • TS2R-P-CHL 100:0/50:50 |
|
| Focusing | Via nosepiece up/down movement, Stroke (manual): Up 8 mm, down 3 mm Coarse stroke: 5.0 mm per rotation, Fine stroke: 0.1 mm per rotation, Coarse motion torque adjustable, Refocusing mechanism mounted |
|
| Nosepiece | Sextuple nosepiece, With DIC prism slots | |
| Condenser | Condenser turret, mount up to 7 modules: Phase Contrast, DIC, NAMC, IMSI, Emboss Contrast and ND for Bright Field Use with any one of ELWD condenser lens, LWD condenser lens and NAMC condenser lens |
|
| Slider | • Pre-centered or Centering PH Slider, 10x, 20x, 40x Objectives available for Phase Contrast • Emboss Contrast sliders(eyepiece-tube-side slider must be mounted), 10x, 20x, 40x, 60x objectives available for Emboss Contrast |
|
| Stage | • Plain Stage, Stage Size 260 (X) ｘ300 (Y) mm with two types of Stage Ring • Rectangular Mechanical Stage Stroke: 114 (X) ｘ73 (Y) mm Adjustable XY stroke limit Accepts 8 types of micro-testplate, well clamper and stage clip |
|
| Holder | • C-S-HP35 Petridish Holder 35 mm • C-S-HLP100 Petridish Holder 100 mm • C-S-HT Terasaki Holder for Terasaki plate and φ65 dish • C-S-HS Slide Glass Holder for glass slides, φ54 dish and hemocytometer • C-S-HU Universal Holder for Terasaki plate, glass slide, φ35-65 dish and hemocytometer • C-S-HG Glass Ring Holder • C-S-HLS Ring Holder Set • TC-S-HA Acrylic Holder |
|
| Epi Fluorescence attachment | — | Epi-fluorescence filter turret (with main body) Filter cubes with noise terminator mechanism Configure with up to 4 Epi-fluorescence filter cubes, one position is used during bright-field observation Attachable Contrast Shield (optional; LWD,ELWD) |
| Dimensions | 286 (W) ×466 (D) ×542 (H) mm | 286 (W) ×466 (D) ×542 (H) mm |
| Weight(approx.) | 17kg | 18kg |
| Rated Voltage/Electric Current | 100V-240V, Less than 0.65A | |
| Power Consumption | 30W | |
*1 APC (Apodized Phase Contrast) is a type of phase contrast observation with reduced halo, thanks to Nikon’s unique lens coating.
*2 NAMC (Nikon Advanced Modulation Contrast) is Nikon’s unique modulation contrast observation method which provides stereoscopic images similar to DIC observation, even with samples on plastic dishes.
*3 Emboss Contrast is Nikon’s unique contrast observation method. It provides pseudo-three-dimensional images using focal illumination, which gives high contrast to samples.
