Overview & Features

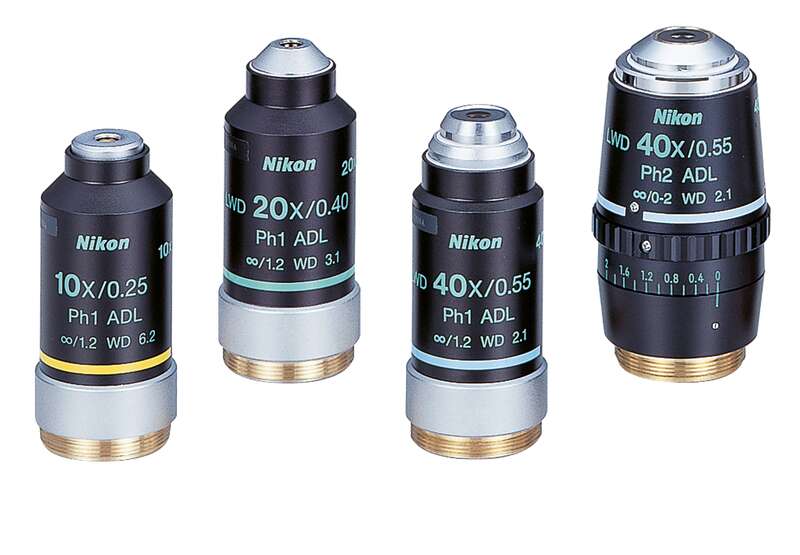

CFI Apodized Achromat Series objective lenses for phase contrast microscopy.
Features
Nikon specifically developed this microscope objective series for phase contrast observation by using its proprietary Apodization process to improve the objective’s phase ring. Division activities taking place within a specimen – often obscured by unwanted halos – can now be observed more clearly.
Specifications
| Model | Dimensions | Transmittance | NA | W.D. (mm) |
Cover glass thickness | Correction ring | Observation |
|---|---|---|---|---|---|---|---|
| CFI Achromat ADL 10XF | Diagram | Graph | 0.25 | 6.20 | 1.20 | BF, PH, POL*, FL (visible light*) | |
| CFI Achromat LWD ADL 20XF | Diagram | Graph | 0.40 | 3.10 | 1.20 | BF, PH, POL*, FL (visible light*) | |
| CFI Achromat LWD ADL 40XF | Diagram | Graph | 0.55 | 2.10 | 1.20 | BF, PH, POL*, FL (visible light*) | |
| CFI Achromat LWD ADL 40XC | Diagram | Graph | 0.55 | 2.70-1.70 | 0-2.00 | ∨ | BF, DF (Dry/Oil), PH, POL*, FL (visible light*) |
BF: Brightfield
DF: Darkfield
PH: Phase contrast
POL: Simple polarizing
FL: Fluorescence
*Possible but not recommended
**External phase contrast observation is possible with Eclipse Ti2-E
Optics
CFI Achromat Series for Apodized Phase Contrast
