Overview & Features

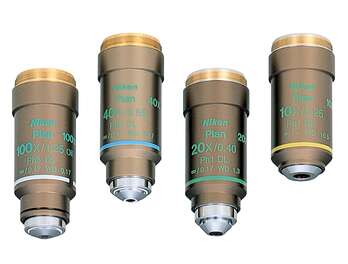

CFI Plan Achromat Series for Phase Contrast-Microscope objectives with crisp and clear images across the entire field of view
Features
CFI Plan Achromat Series objectives for phase contrast microscopy. Nikon’s CFI Plan Achromat series provides incredible image flatness over the entire 25mm field of view, with chromatic aberration correction throughout the entire visible spectrum. With incredible image sharpness (even for unstained images), these objectives can be used for laboratory work as well as exacting research.
Specifications
| Model | Dimensions | Transmittance | NA | W.D. (mm) |
Cover glass thickness | Correction ring | Observation |
|---|---|---|---|---|---|---|---|
| CFI Plan Achromat DL 10X | Diagram | Graph | 0.25 | 10.50 | — | BF, DF (Dry), PH, POL*, FL (visible light*) | |
| CFI Plan Achromat DL 20X | Diagram | Graph | 0.40 | 1.20 | 0.17 | BF, DF (Dry/Oil), PH, POL*, FL (visible light*) | |
| CFI Plan Achromat DL 40X | Diagram | Graph | 0.65 | 0.56 | 0.17 | BF, DF (Dry/Oil), PH, POL*, FL (visible light*) | |
| CFI Plan Achromat DL 100X Oil | Diagram | Graph | 1.25 | 0.20 | 0.17 | BF, PH, POL*, FL (visible light*) |
Optics
CFI Plan Achromat Series for Phase Contrast
