Overview & Features

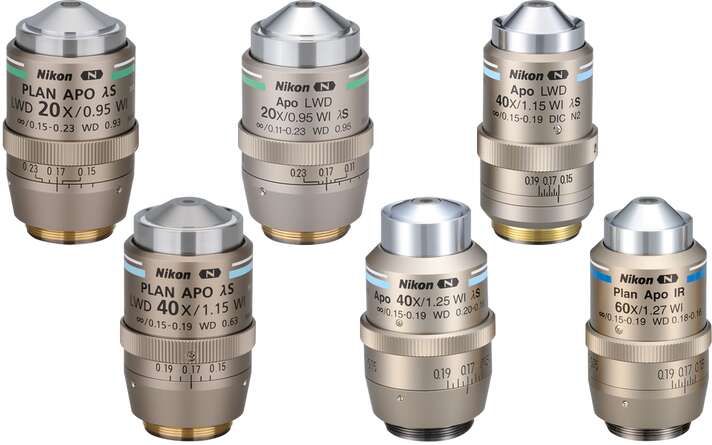

Microscope objectives optimized for live cell and confocal imaging.
Features
These high-numerical-aperture (NA) objectives provide chromatic aberration correction over wavelengths ranging from violet to infrared and are ideal for multicolor confocal imaging. The transmittance of these lenses is enhanced over a wide wavelength range by utilizing Nano Crystal Coat technology. Plan Apochromat objectives also provide superior image flatness.
Specifications
| Model | Dimensions | Transmittance | NA | W.D. (mm) |
Cover glass thickness | Correction ring | Observation |
|---|---|---|---|---|---|---|---|
| CFI Apochromat LWD Lambda S 20XC WI | Diagram | Graph | 0.95 | 0.95 (0.99-0.90) | 0.11-0.23 | ∨ | BF, DF (Oil), DIC, POL, FL (Visible light, NIR) |
| CFI Apochromat Lambda S 40XC WI | Diagram | Graph | 1.25 | 0.18 (0.20-0.16) | 0.15-0.19 | ∨ | BF, DIC, PH**, POL, FL (Visible light, UV) |
| CFI Apochromat LWD Lambda S 40XC WI | Diagram | Graph | 1.15 | 0.60 (0.61-0.59) | 0.15-0.19 | ∨ | BF, DF (Oil), DIC, PH**, POL, FL (Visible light, UV) |
| CFI Plan Apochromat IR 60XC WI | Diagram | Graph | 1.27 | 0.17 (0.18-0.16) | 0.15-0.19 | ∨ | BF, DIC, PH**, POL, FL (visible light, UV, NIR) |
| CFI Plan Apochromat LWD Lambda S 20XC WI | Diagram | Graph | 0.95 | 0.93 | 0.11-0.23 | ∨ | BF, DF (Oil), DIC, POL, FL (Visible light, NIR) |
| CFI Plan Apochromat LWD Lambda S 40XC WI | Diagram | Graph | 1.15 | 0.63 | 0.15-0.19 | ∨ | BF, DF (Oil), DIC, PH**, POL, FL (Visible light, UV) |
BF: Brightfield
DF: Darkfield
PH: Phase contrast
POL: Simple polarizing
FL: Fluorescence
*Possible but not recommended
**External phase contrast observation is possible with ECLIPSE Ti2-E
Optics
CFI Plan Apochromat/Apochromat Lambda S Series
