Overview & Features

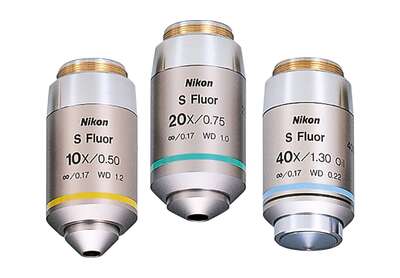

CFI Super Fluor Series-Objective lenses with superior UV transmission and unsurpassed chromatic correction.
Features
CFI Super Fluor Series objective lenses provide the highest level of ultra-violet transmission, exceptionally high N.A.s, and terrific chromatic correction. Thanks to outstanding transmission below 340nm, Super Fluor objectives are the ideal choice for fluorochromes like indo-1, fura-2, and fluo-3. These objectives also have improved signal-to-noise (S/N) for short wavelengths, (due to low auto-fluorescence materials,) and have high N.A.s, making the fluorescence images they produce significantly sharper and brighter. They are also a great choice for photo-activation of caged compounds.
Specifications
| Model | Dimensions | Transmittance | NA | W.D. (mm) |
Cover glass thickness | Correction ring | Observation |
|---|---|---|---|---|---|---|---|
| CFI Super Fluor 4X | Diagram | Graph | 0.20 | 15.50 | 0.17 | BF, FL (visible light, UV) | |
| CFI Super Fluor 10X | Diagram | Graph | 0.50 | 1.10 | 0.17 | BF, DF (Dry/Oil), DIC, POL*, FL (visible light, UV) | |
| CFI Super Fluor 20X | Diagram | Graph | 0.75 | 1.00 | 0.17 | BF, DF (Dry/Oil), DIC, POL*, FL (visible light, UV) | |
| CFI Super Fluor 40X Oil | Diagram | Graph | 1.30 | 0.19 | 0.17 | BF, DIC, PH**, POL*, FL (visible light, UV) | |
| CFI Super Fluor 100XS Oil | Diagram | Graph | 0.50-1.30 | 0.20 | 0.17 | BF, DF (Dry/Oil), POL*, FL (visible light, UV) |
BF: Brightfield
DF: Darkfield
PH: Phase contrast
POL: Simple polarizing
FL: Fluorescence
*Possible but not recommended
**External phase contrast observation is possible with ECLIPSE Ti2-E
