Overview & Features
Nikon Advanced Modulation Contrast -Dedicated objectives for advanced modulation contrast.
Features
Colorless and transparent samples can be observed in high relief, even through plasticware, which is not possible with DIC. The direction of contrast can be matched to S Plan Fluor ELWD NAMC objectives, thereby allowing optimal contrast selection for techniques like microinjection and ICSI.
Specifications
| Model | Dimensions | Transmittance | NA | W.D. (mm) | Cover glass thickness (mm) | Correction ring | Observation |
|---|---|---|---|---|---|---|---|
| CFI Achro NAMC 10XF | Diagram | Graph | 0.25 | 6.20 | 1.20 | NAMC, BF, FL (visible light*) | |
| CFI Achro LWD NAMC 20XF | Diagram | Graph | 0.40 | 3.10 | 1.20 | NAMC, BF, FL (visible light*) | |
| CFI Achro LWD NAMC 40XC | Diagram | Graph | 0.55 | 2.70 – 1.70 | 0 – 2.00 | ∨ | NAMC, BF, FL (visible light*) |
| CFI S Plan Fluor ELWD NAMC 20XC | Diagram | Graph | 0.45 | 8.20 – 6.90 (7.40 with cover glass thickness of 1.2 mm) | 0 – 2.00 | ∨ | NAMC, BF, FL (visible light, UV) |
| CFI S Plan Fluor ELWD NAMC 40XC | Diagram | Graph | 0.60 | 3.60 – 2.80 (3.10 with cover glass thickness of 1.2 mm) | 0 – 2.00 | ∨ | NAMC, BF, FL (visible light, UV) |
NAMC: Nikon Advanced Modulation Contrast
BF: Brightfield
FL: Fluorescence
*Possible but not recommended
Optics

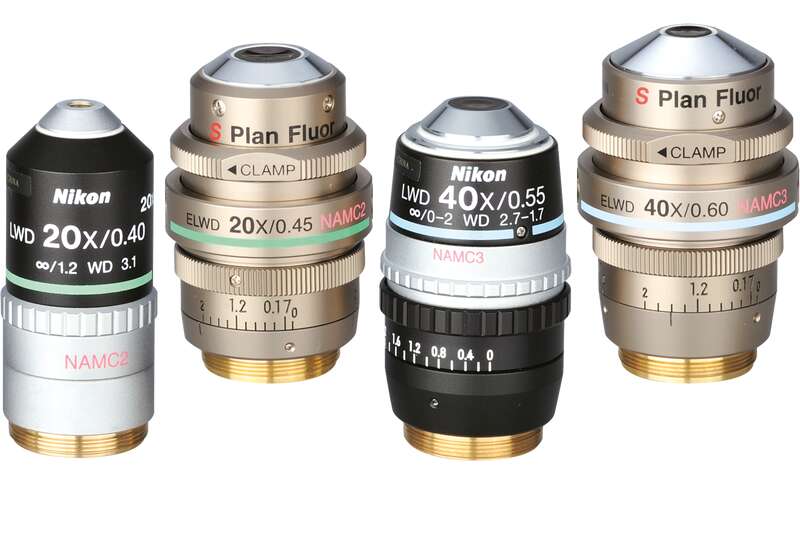

Nikon Advanced Modulation Contrast Objective Series
