Stereo Microscope Accessories-A variety of accessories are available for stereoscopic observations. This includes objectives, tubes, illuminators, stands and stages.
A variety of accessories are available for stereoscopic observations. This includes objectives, tubes, illuminators, stands and stages.
A wide selection with various magnifications and working distances is available, including high-NA, high-resolution and wide-viewfield Plan Apo WF series objectives with superior image flatness and chromatic aberration correction.

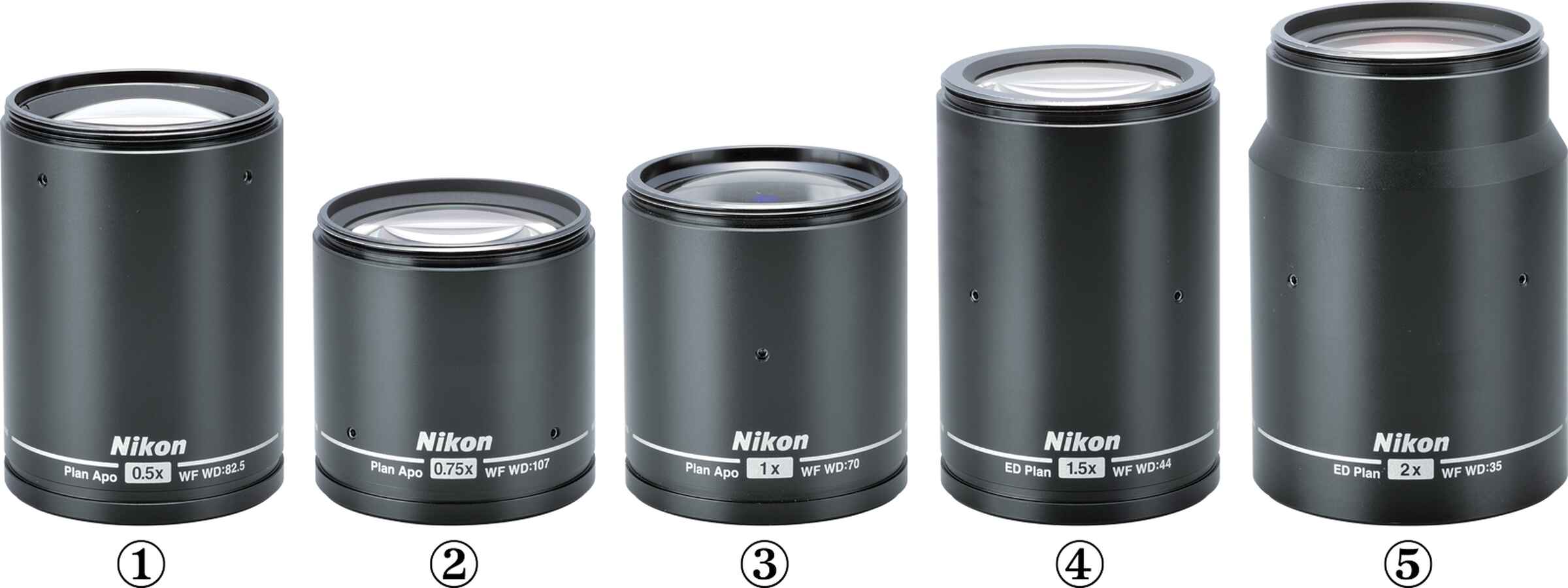

① Plan Apo 0.5X/WF, ② Plan Apo 0.75X/WF, ③ Plan Apo 1X/WF, ④ ED Plan 1.5X/WF, ⑤ ED Plan 2X/WF|
Objectives
|
Working distance (mm)
|
Zoom magnification
|
NA
|
Actual FOV*1
|
|
|---|---|---|---|---|---|
| Plan Apo | 0.5X/WF | 82 | 0.63X | 0.0095 | 69.8 |
| 8X | 0.0525 | 5.5 | |||
| 0.75X/WF | 107 | 0.63X | 0.0143 | 46.6 | |
| 8X | 0.0788 | 3.7 | |||
| 1X/WF | 70 | 0.63X | 0.0190 | 34.9 | |
| 8X | 0.1050 | 2.8 | |||
| ED Plan | 1.5X/WF | 44 | 0.63X | 0.0285 | 23.3 |
| 8X | 0.1575 | 1.8 | |||
| 2X/WF | 35 | 0.63X | 0.0380 | 17.5 | |
| 8X | 0.2100 | 1.4 | |||
*1 With C-W10XB eyepiece
|

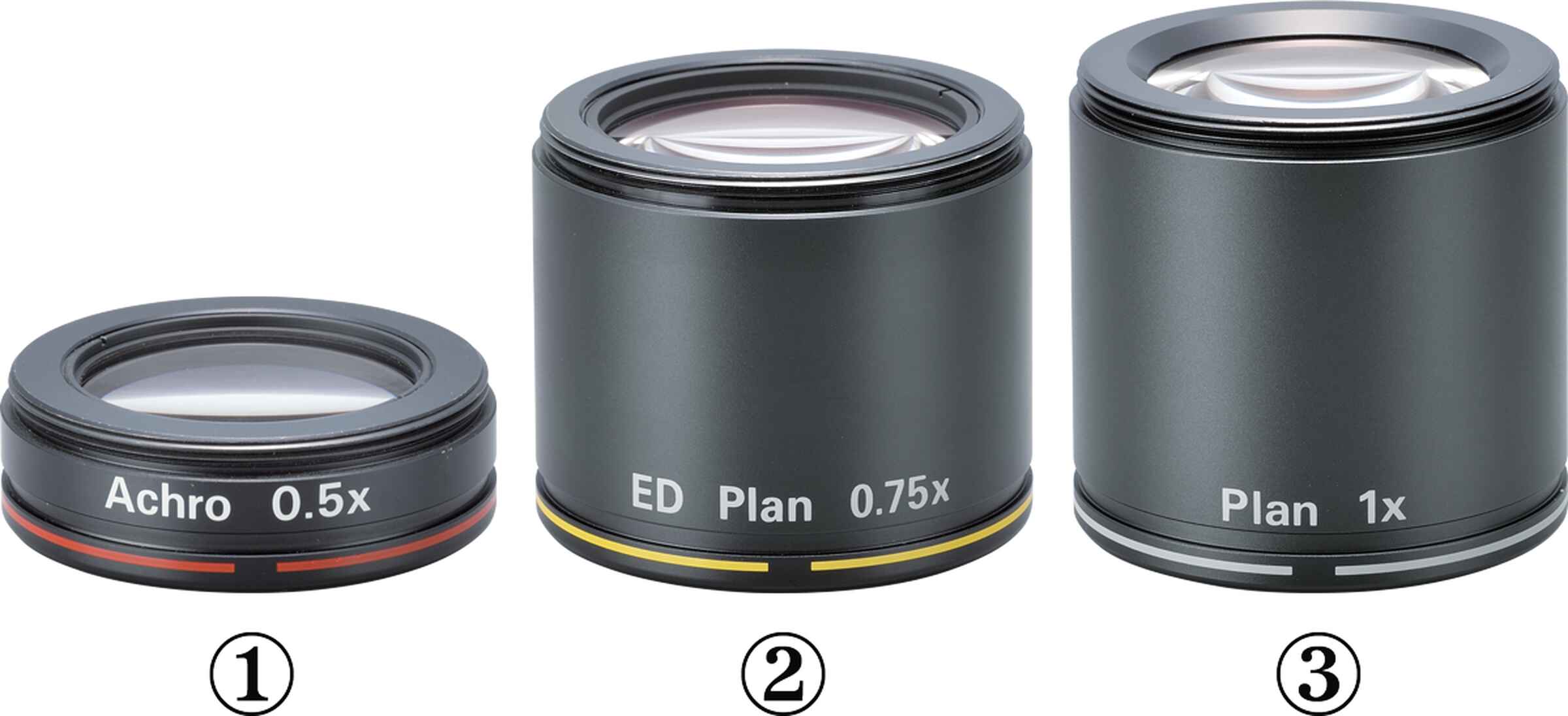

Objectives
|
Working distance (mm)
|
Zoom magnification
|
NA
|
Actual FOV*1
|
|
|---|---|---|---|---|---|
| Achro | 0.5X | 189 | 1X | 0.0145 | 44 |
| 8X | 0.0525 | 5.5 | |||
| ED Plan | 0.75X | 117 | 1X | 0.0218 | 29.3 |
| 8X | 0.0788 | 3.7 | |||
| Plan | 1X | 78 | 1X | 0.029 | 22 |
| 8X | 0.105 | 2.75 | |||
*1 With C-W10XB eyepiece
|
Microscopes
|
Auxiliary objectives
|
Working distance (mm)
|
|---|---|---|
| SMZ745/745T | G-AL ERG 0.77-1.06X | 102-48 |
| G-AL 0.5X | 211 | |
| G-AL 0.7X | 150 | |
| G-AL 1.5X | 61 | |
| G-AL 2X | 43.5 | |
| SMZ445/460 | AL5 (0.5X) | 181 |
| AL7 (0.7X) | 127.5 | |
| SMZ-2 | AL5 (0.5X) | 103 |
| AL7 (0.7X) | 95 |

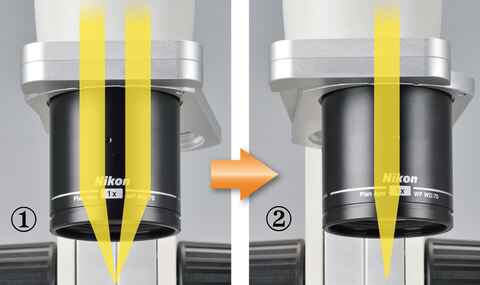

① Stereoscopic view, ② On-axis view

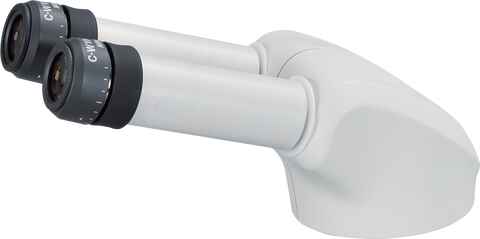

Various ergonomic tubes with different inclination angles enable suitable eye levels to be selected for observation, even when an intermediate tube or illuminator is attached. Trinocular tubes are also equipped with camera ports.
Allows continuous adjustment of the eyepiece inclination from 0° to 30°.
Optical path switching ratio of eyepiece:camera port is 100:0/0:100 with P-TERG100 and 100:0/50:50 with P-TERG50.
*P-TERG100/P-TERG50 Trinocular Tilting Tube cannot be used with C-PSN/C-PSCN/C-LEDS/C-DS Stands.

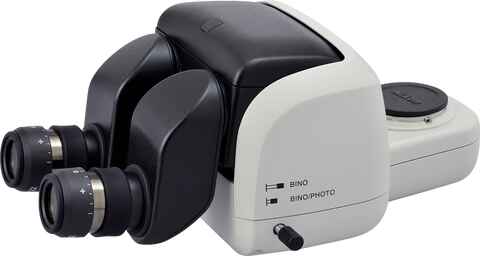

P-TERG100 Trinocular Tilting Tube

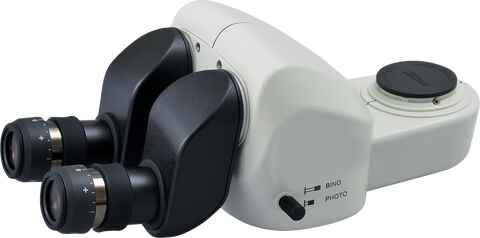

By adjusting the eyepiece mount, the eyepoint height can be raised by 106 mm while keeping the inclination angle constant.
Optical path switching ratio of eyepiece:camera port is 100:0/0:100.

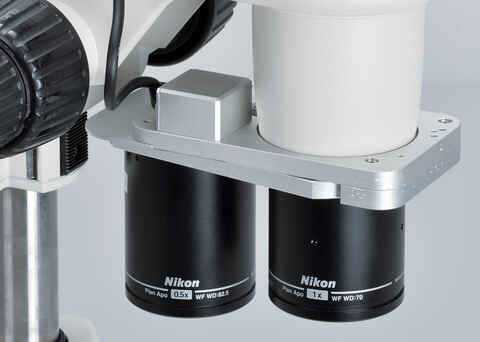

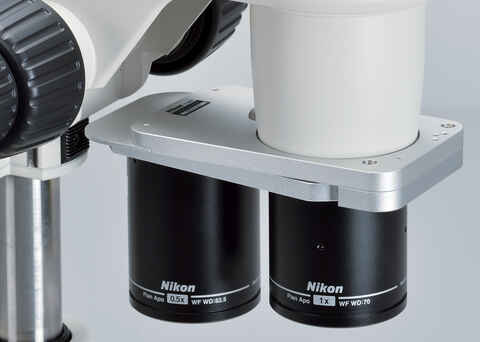

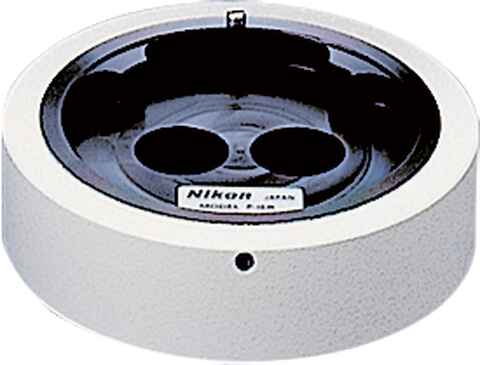

Various intermediate accessories are available that can be inserted between the microscope zooming body and tube.
Using a beam splitter and camera adapter, a digital camera can be attached to the binocular eyepiece tube for imaging. Optical path switching ratio of left eyepiece:right eyepiece:camera port is 100:100:0/100:50:50.
Simultaneous observation of the same viewfield is possible between the eyepiece lenses of both teaching head and microscope, making it ideal for educational purposes. The pointer can indicate target points in the viewfield during observation.
A sample image can be drawn by simply tracing the observation image, which is overlaid on top of the drawing within the field of view. The drawings can be removed from the field of view by using the knob to block the light path.
Provides a cone of light from above the sample to the center, minimizing unwanted shadow. Suitable for observation of electronic substrates.
Illuminator is located away from microscope. It enables bright observation with high-intensity light without damaging sample with its heat.
* G-OBA60 Adapter is required.

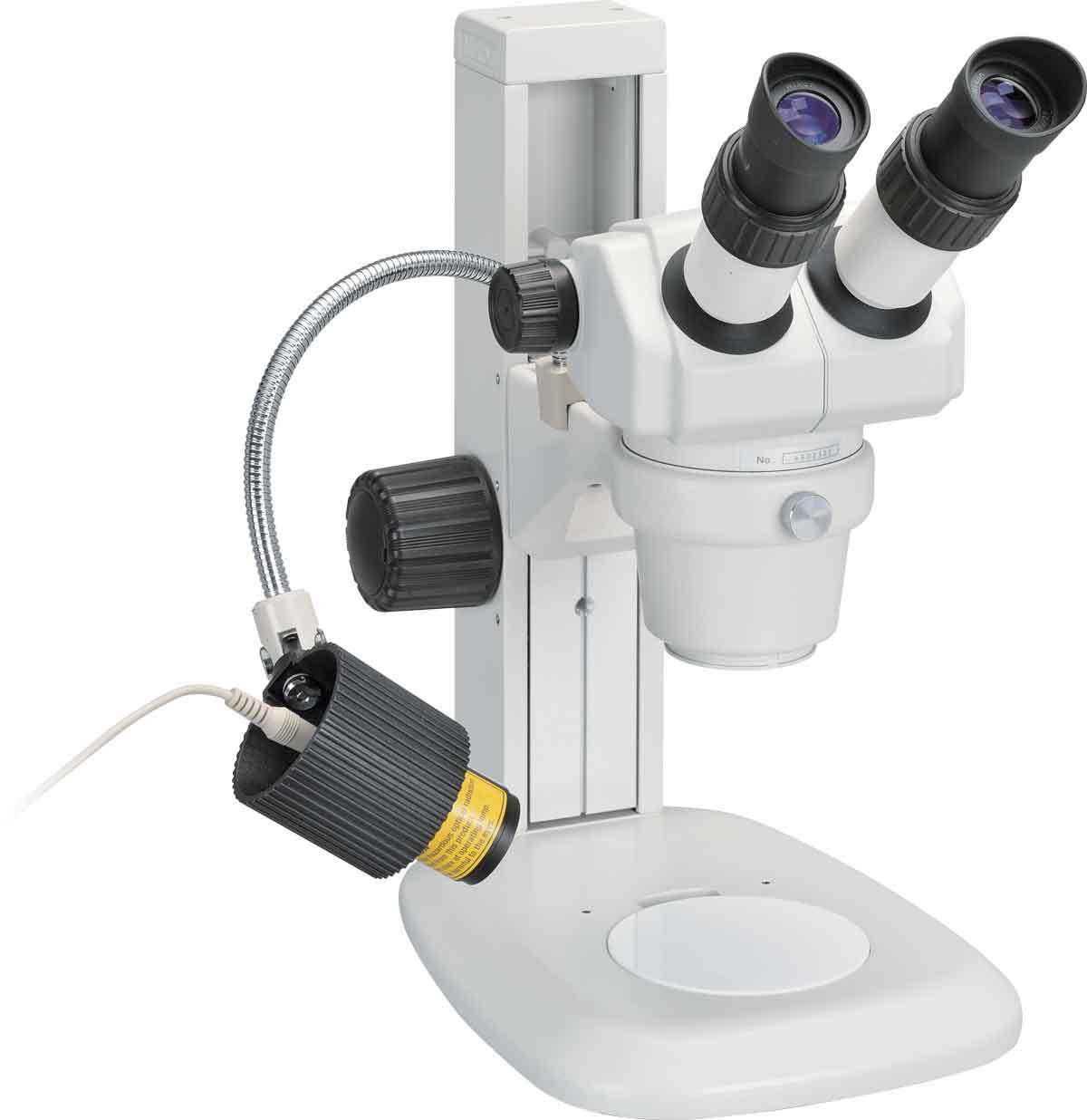

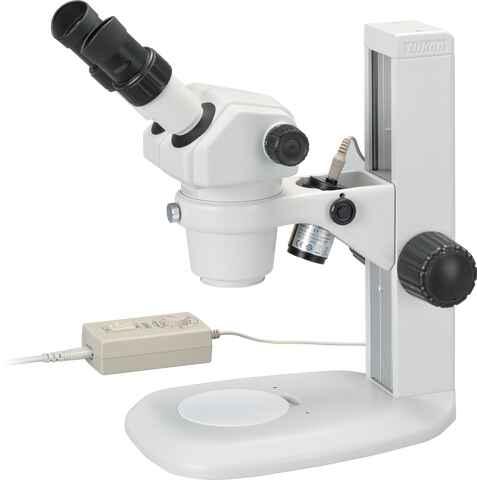

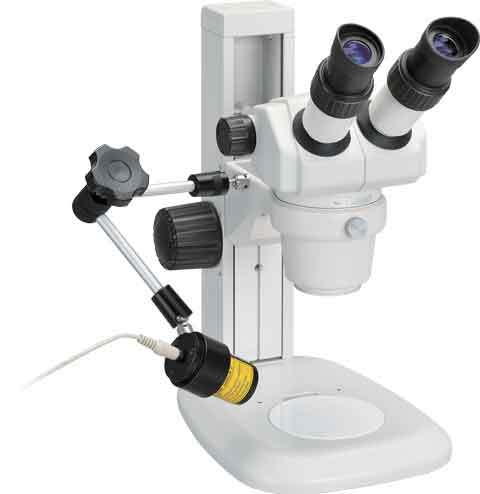

The direction and angle of the illumination can be changed with simple adjustments of the flexible arm.
It enables bright observation with high-intensity light without damaging sample with its heat.

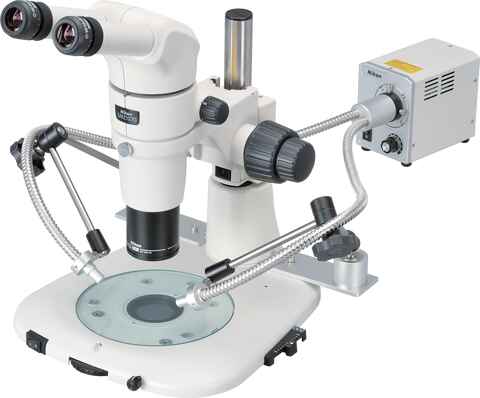

The direction and angle of illumination can be changed using the flexible arms.
It enables bright observation with high-intensity light without damaging sample with its heat.
The direction and angle of illumination can be changed using the fiber holder.
Suitable for brightfield observation for high-reflectance flat surface samples such as polished metals and wafers.

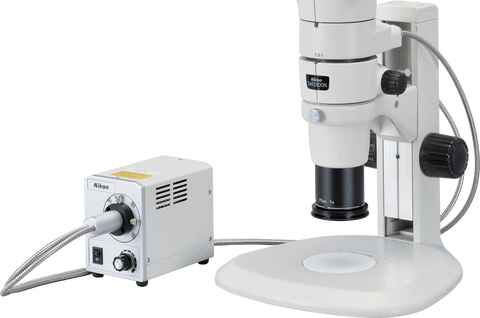

Coaxial illuminator for parallel optics-type stereo microscopes. Provides high-intensity illumination for the entire view field.
* 1/4λ plate is required

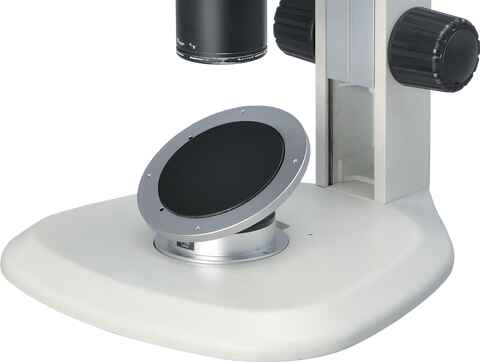

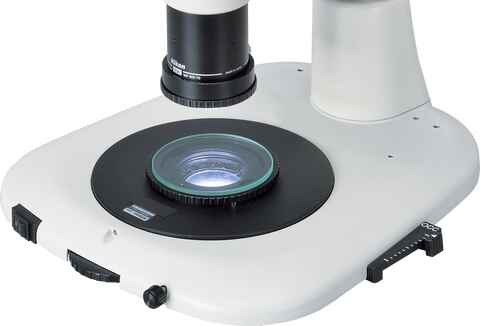

Various observation accessories are available that utilize diascopic and episcopic illuminations. They can be used for samples that are difficult to observe using standard illumination.

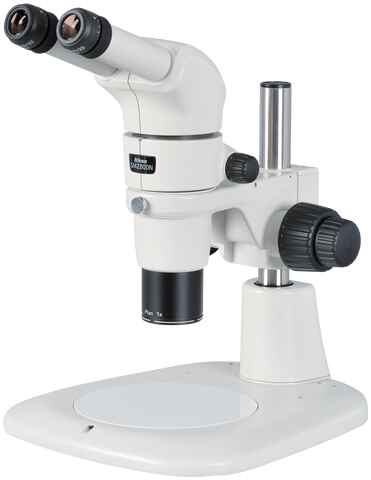

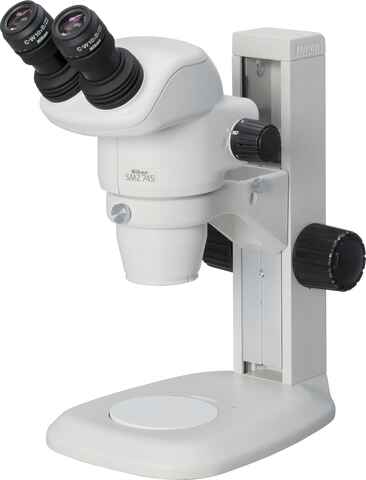

Offers a comfortable work area and allows easy handling of samples. C-PSCN has a small base that saves desk space.
Illumination method: episcopic
* C-PSN plain Stand/CN and C-PSCN compact stand/CN cannot be used with the Trinocular Tubes.
C-PSNC-PSCN

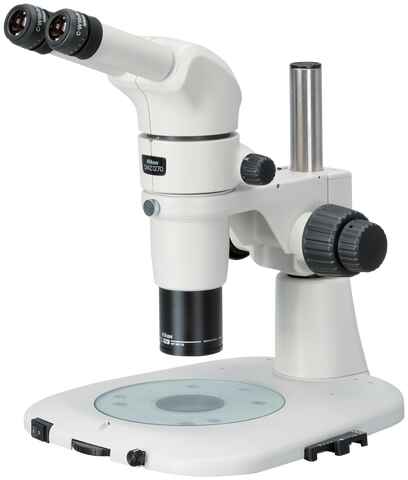

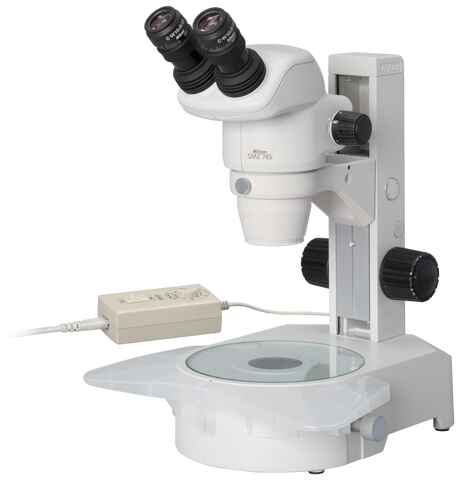

Features a hand rest for comfortable operation. Used in conjunction with C-DSLU2 LED Unit for DIA Illumination Stand.
Illumination method: brightfield
* C-DS Diascopic Stand S cannot be used with the P-TERG100/P-TERG50 Trinocular Tilting Tube and P-T100 Trinocular Tube.

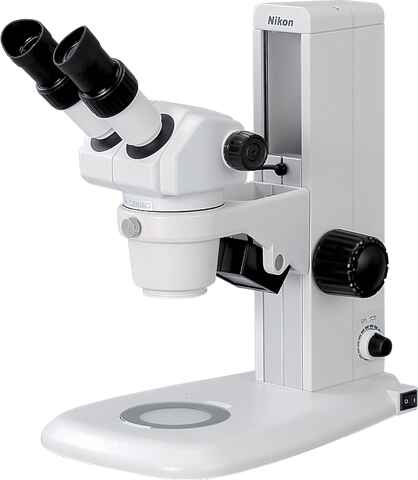

The OCC illumination system allows colorless and transparent samples to be observed in high relief. Compact slim-type base enhances operation efficiency.
Illumination method: brightfield, OCC*2
*2 For OCC illumination, conditions of use vary depending on objective selected.

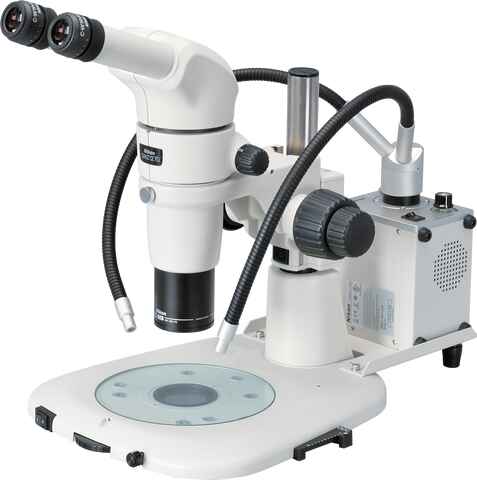

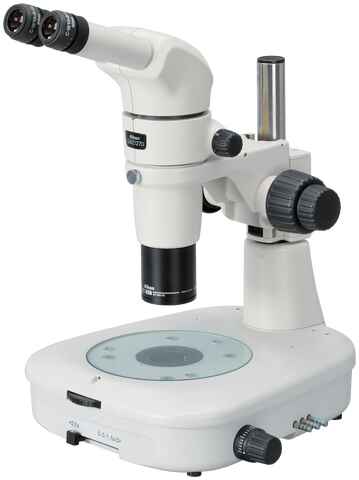

Light source is located away from microscope, enabling bright observation with high-intensity light without damaging sample with its heat.
Illumination method: brightfield, OCC*2
*2 For OCC illumination, conditions of use vary depending on objective selected.
These stands are handy in microscopy with large samples not loaded onto the standard stand. The microscope zooming body is mounted to the stand arm via a focusing mount. The G-US1A is a table clamp type (table top thickness: 3 to 53 mm).
G-US1A Universal Table Stand 1
G-US2 Universal Table Stand 2Not only can it be used for a large sample, but this extremely stable stand also easily accommodates intermediate tubes.
Used in conjunction with the C-FMAN Focusing Mount AN on the SMZ1270/1270i/800N/745/745T/445/460.
Used in conjunction with the SM Focusing Mount on the SMZ-2.
Universal Stand US-3
The image is a configuration sample with the SMZ745.
Unit: mm
|
Universal Table Stand
|
G-US1A
|
G-US2
|
US-3
|
|---|---|---|---|
| Vertical cross travel | 253mm | 254mm | 229mm |
| Horizontal cross travel | 260mm | 272mm | |
| Weight (approx.) | 4.4kg | 23.0kg | 30.5kg |
| C-FMAN Focusing Mount AN | — | ◯ | |
| C-FMBN Focusing Mount BN | ◯ | — | |
| C-FMCN Focusing Mount CN | — | — | |
| SM Focusing Mount | ◯* | ◯ | |
◯: Possible
* G-USA Adapter is required
The image is a configuration sample with the SM Focusing Mount.
Various types of focusing mounts are available depending on use. They are used to incorporate stereo microscope bodies into IC bonders or other devices (SM Focusing Mount is for SMZ-2). These mounts can also be used when attaching microscopes to Universal Table Stands.
C-FMAN Focusing Mount AN: ø76mm
C-FMBN Focusing Mount BN
C-FMCN Focusing Mount CN
|
Focusing Mounts
|
C-FMAN Focusing Mount AN
|
C-FMBN Focusing Mount BN
|
C-FMCN Focusing Mount CN
|
SM Focusing Mount
|
|---|---|---|---|---|
| Focusing area | 40mm | 50mm | 50mm | 40mm |
| Weight (approx.) | 0.6kg | 0.8kg | 1.6kg | 0.6kg |
| Antistatic function (ESD) | ◯ | ◯ | — | — |
| Compatible microscopes | SMZ1270 / 1270i / 800N / 745 / 745T / 445 / 460 | SMZ-2 | ||

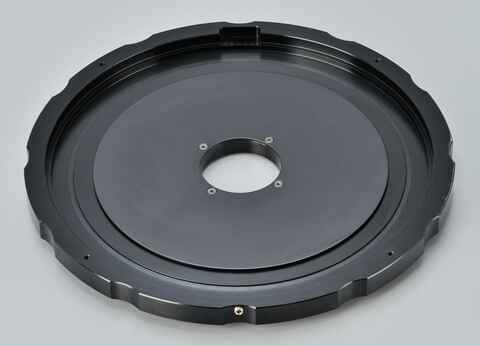

Stages allow smooth sample movement in order to change viewfield during observation.
