Overview & Features

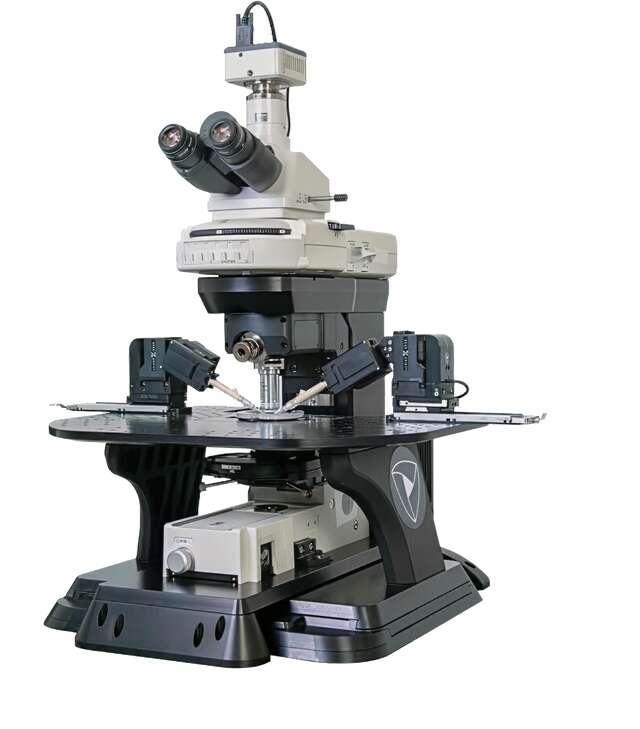

Nikon has partnered with Sensapex to provide a highly stable, automated microscope solution for electrophysiology and imaging applications. By integrating Nikon and Sensapex technologies, this system delivers outstanding sample and objective positioning with superior stability, precision, and control.
The Sensapex FN-M can be configured with a single or dual motorized nosepiece providing flexible, smooth movement between objective positions without sacrificing sample positioning or focus. Motorized switching is compatible with popular water-dipping objectives, ensuring parfocality and minimizing complication in high-level applications.
Features
Nikon has partnered with Sensapex to provide a highly stable, automated microscope solution for electrophysiology and imaging applications. By integrating Nikon and Sensapex technologies, this system delivers outstanding sample and objective positioning with superior stability, precision, and control.
The Sensapex FN-M can be configured with a single or dual motorized nosepiece providing flexible, smooth movement between objective positions without sacrificing sample positioning or focus. Motorized switching is compatible with popular water-dipping objectives, ensuring parfocality and minimizing complication in high-level applications.

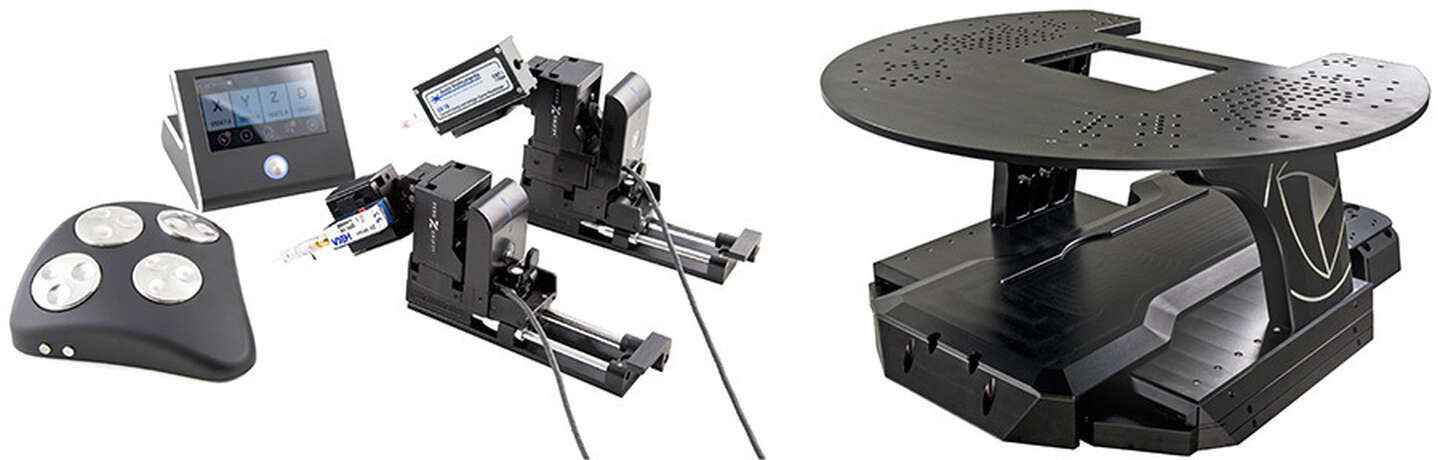

Closed-Loop Positioning for Patch Clamping
The use of closed-loop positioning on the microscope, stage and manipulators means the Sensapex FN-M is the most accurate patch clamp system on the market—ensuring all moving parts end up exactly where they are supposed to—every time.

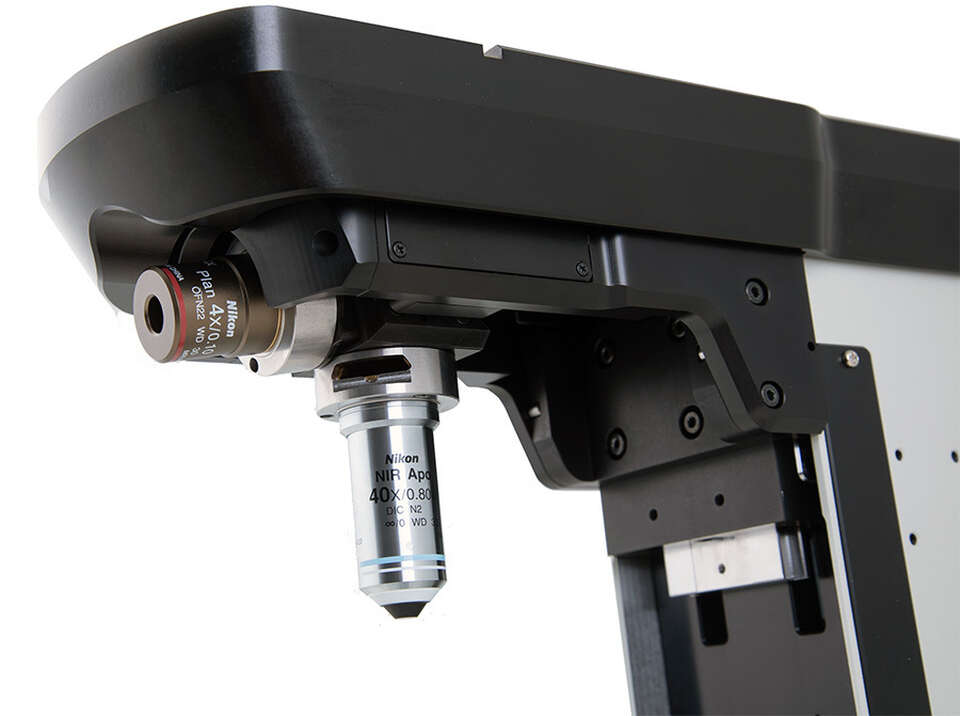

Flexible and Smooth Positioning with Motorized Nosepiece Options
The Sensapex FN-M can be configured with a single or dual motorized nosepiece providing extra flexible, smooth movement between positions without sacrificing sample positioning or focus.
Effortless Setup and Control
The plug and play installation and intuitive touch-screen interface make the Sensapex FN-M easy to configure and use. Less distractions and time lost on configuration leaves more time and attention for experiments.
- Touch screen display shows coordinates of manipulator
- Sleep mode for recording
- Connects up to four manipulators per HUB Lite
- Millisecond level control synchrony between manipulators and computer through Ethernet interface
Specifications
| Sensapex FN-M | |
|---|---|
| Optical System | CFI60 and CFI75 infinity corrected |
| Main Body | I-shaped, external power supply |
| Focusing | Via nosepiece up/down movement 40 mm range, 4 nm resolution Multi-function joystick and Touchscreen Controller (manipulator-ready control) |
| Nosepiece | Single Nosepiece for CFI75 or Dual Nosepiece for CFI60 and CFI75 |
| Stage | Manual Platform or Platform with Motorized Base 85 mm x 120 mm travel 4 nm resolution 100 nm repeatability |
| Operating Conditions | Temperature: +10ºC to +40ºC Humidity: 85% RH max. (no condensation) |
Note: All Sensapex products are patented technologies with a design and manufacture base in Oulu, Finland.
